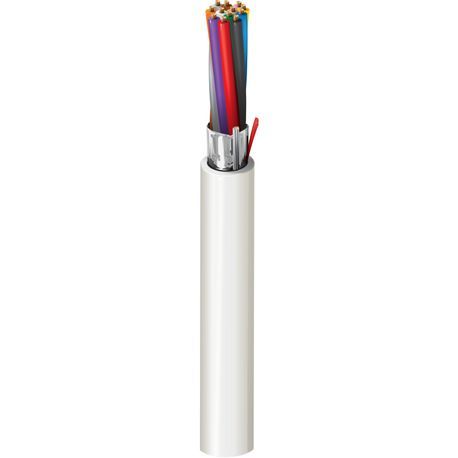

Belden 6309FE 8771000 Security & Sound, #18-12c, BC, Shielded, CMP #BEL6309FE

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Brochure

Belden 6309FE 8771000 Security & Sound, #18-12c, BC, Shielded, CMP

Part #: BEL6309FE

Qty

x Length (1000 ft)

Please select all above options before adding to cart.

Product Specification Q&A

Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Belden Part Number	6309FE 8771000
Cable Type	Belden
Category	Safety, Sound, & Security
Category Applications	Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls
Category Insulation Description	LS PVC - Low Smoke Polyvinyl Chloride
Conductor Material	Bare Copper
Conductors	12
Gauge	18
In Stock	Yes
Insulation Description	PVC - Polyvinyl Chloride
Insulation Material	PVC-LS
Jacket Material	PVC-LS
NEC/(UL) Specification	CMP
Outer Jacket	PVC-LS
Product Category	Security Alarm & Sound
Product Short Description	Security & Sound Cable, Plenum-CMP, 12-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Shield	Foil(s) or Copper Tape(s)
Shielding	Overall Foil Tape
Stranding	7x26
Sub Category	Safety, Sound, & Security
Temperature	75°C
Voltage Rating	300V
