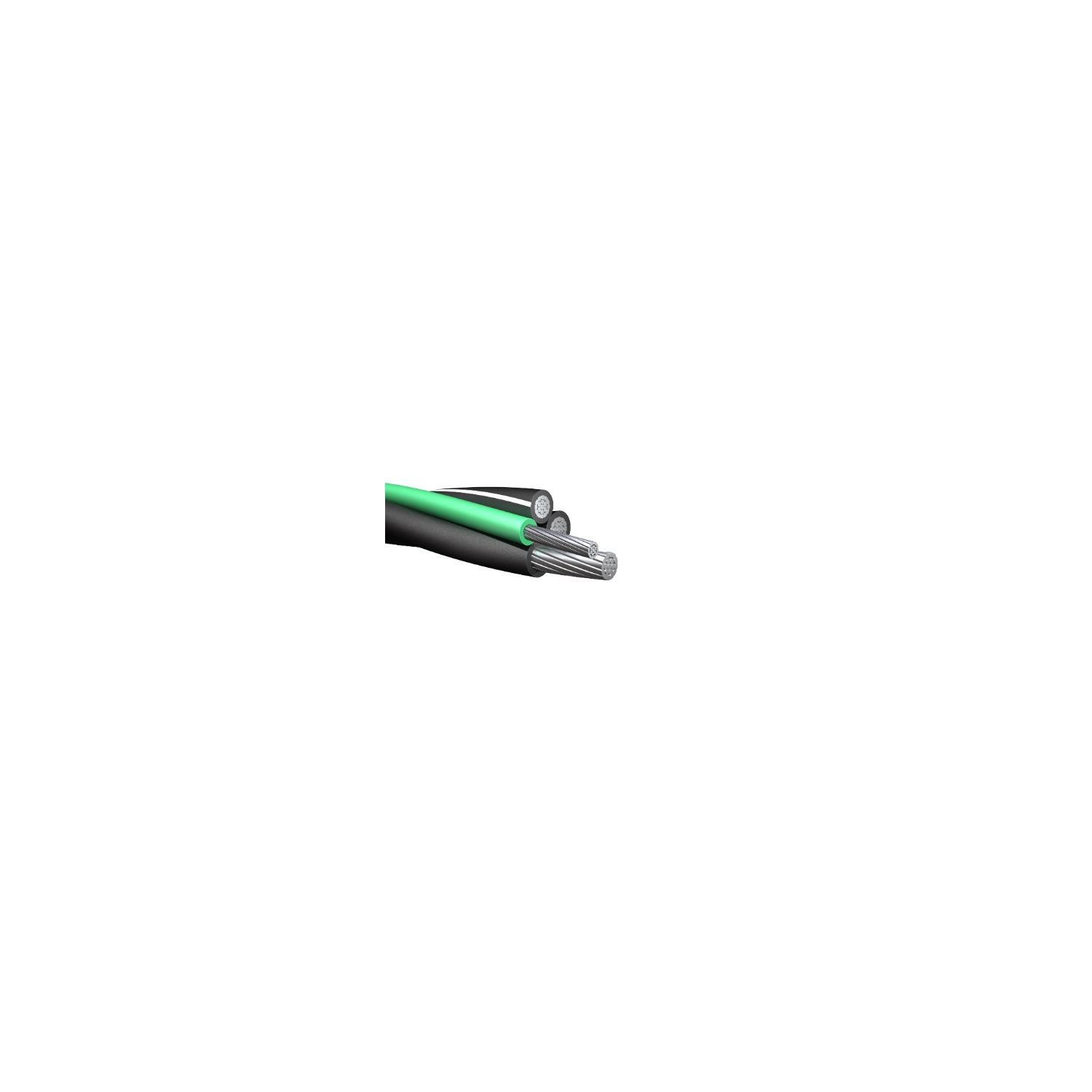

Aluminum Mobile Home Feeder; 600V #MHF2-2-4-6

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Aluminum Mobile Home Feeder; 600V

Part #: MHF2-2-4-6

Qty

x Length (per 1000 ft)

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category Conductor Description	8000 series aluminum
Category Insulation Description	XLPE - Cross-Linked Polyethylene

Used to provide power from the electrical disconnect to the panel board in mobile home applications in dry, wet and underground condition.

Name

Question

Part #	Phase Conductor AWG	Phase Conductor Stranding	Phase Conductor Insul. Thick. Mils	Ground AWG	Material Weight (Lbs./M')
MHF2-2-4-6	2	7	60	6	296
MHF4/02C-2/0-4	4/0	19	80	4	848

Note: The data shown is approximate and subject to standard industry and manufacturer tolerances
