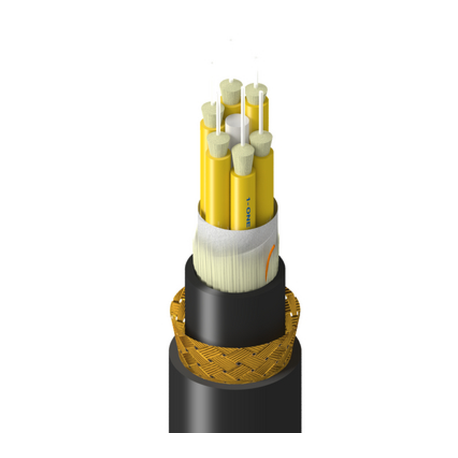

Marine Breakout OS2 6F Bronze Braid Armor LSZH DBL JKT #BELTM-SBB-006-LBAN

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

Marine Breakout OS2 6F Bronze Braid Armor LSZH DBL JKT

Part #: BELTM-SBB-006-LBAN

Qty *

x Length (ft) *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category Features	• American Bureau of Shipping (ABS) Approved • Direct Burial • Indoor/Outdoor Rated
Category Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof
Category Description	Marine Grade, Indoor/Outdoor, Breakout, OS2, 6 Fibers, Subunits 2.0mm 900um, Bronze Braid Armor, Double Jacket - LSZH, OFCR-ST1, ABS Approved
Product Category	Fiber Breakout Cable
Category Standards	• Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial • Flammability / Reaction to Fire: NEC/CEC OFCR-ST1/OFCR-ST1, FT4 • ICEA Compliance: S-104-696 • IEEE Compliance: IEEE 45, IEEE 1580 (Braid Only)/Flame Rating per UL 1666, 1685, IEEE 1202/FT4 • Marine Compliance: ABS • ROHS II 2011/65/EU • ROHS III 2015/863/EU • REACH EC1907-2006 • ANSI/TIA-568.3-D, ANSI/TIA-598-D
Max Operating Temperature	-40 °C to +70 °C
Armor	BBA - Bronze Braid Armor
Fiber	OS2
Core	8.2/125 µm
Material	LSZH - Low Smoke Zero Halogen
Fiber Count	6
Color Coding	TIA-598-D
Strength Member	Waterblocking Aramid Yarns
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Inner Jacket	0.368 in (9.3 mm)
Color	Black
Outer Jacket	0.553 (14.0)

Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

• Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial • Flammability / Reaction to Fire: NEC/CEC OFCR-ST1/OFCR-ST1, FT4 • ICEA Compliance: S-104-696 • IEEE Compliance: IEEE 45, IEEE 1580 (Braid Only)/Flame Rating per UL 1666, 1685, IEEE 1202/FT4 • Marine Compliance: ABS • ROHS II 2011/65/EU • ROHS III 2015/863/EU • REACH EC1907-2006 • ANSI/TIA-568.3-D, ANSI/TIA-598-D
