nVent CADDY 1-5/16 inch J-Hook CAT21HP

Home > Cable Routing and Management > nVent CADDY 1-5/16 inch J-Hook CAT21HP
nVent CADDY 1-5/16 inch J-Hook CAT21HP

*Product images are for illustrative purposes only and may differ from the actual product.

nVent CADDY 1-5/16 inch J-Hook CAT21HP

Download Spec Sheet
Brochure

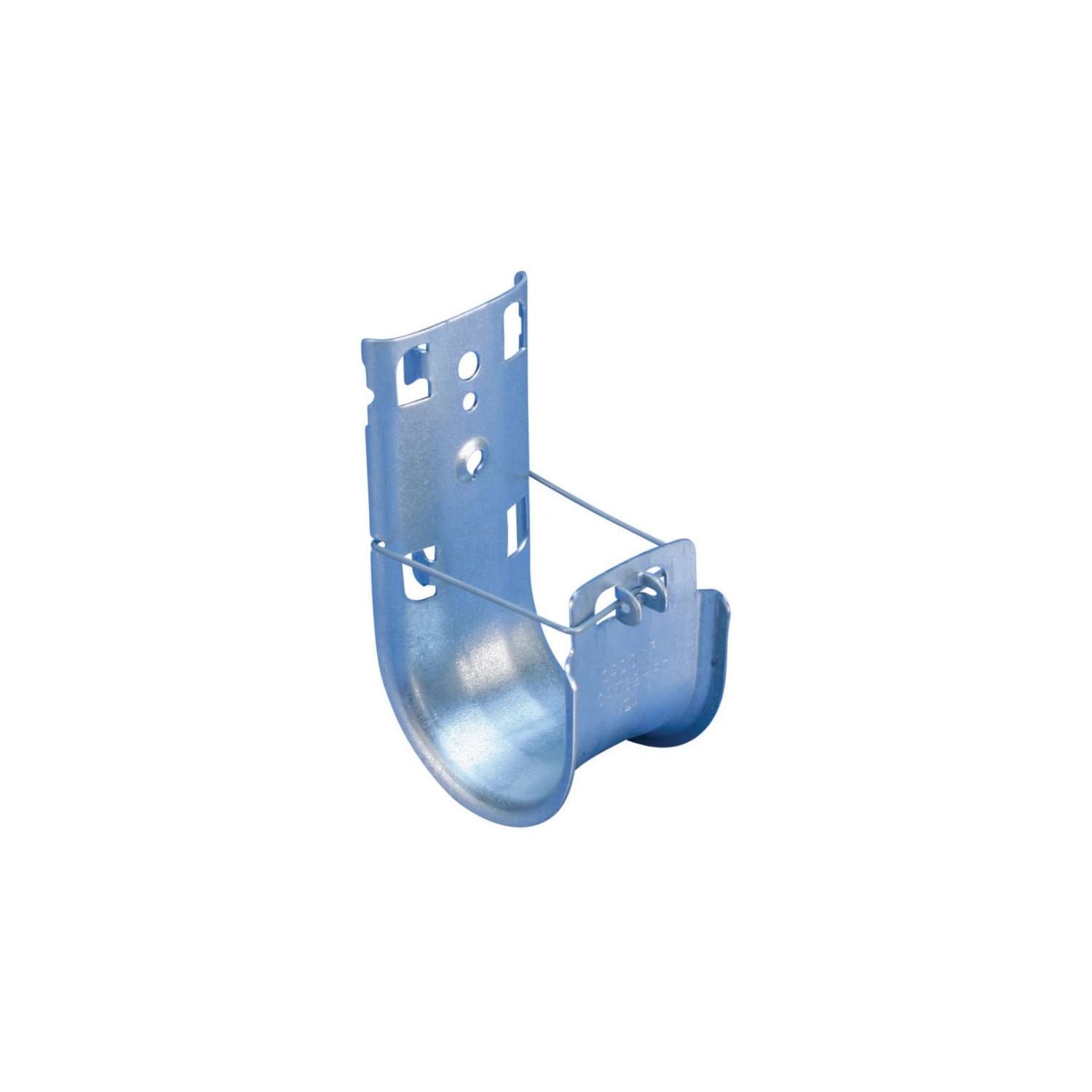

nVent CADDY 1-5/16 inch J-Hook CAT21HP

Part #: CAT21HP
Cat HP J-hook, pre-galvanized, 1 5/16" dia

Please select all above options before adding to cart.
Construction
Brand nVent CADDY
Category Features Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic Rounded edges on J-Hooks provide proper bend radius support for high performance data cables Multiple color options aid in the identification and organization of the pathway application Provides superior fill capacity and load rating over most other non-continuous cable support alternatives Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces Tested according to DIN 4102-12 Complies with EN 50174-2 Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Category Description Non-continuous pathway support solution with a wide base design and smooth beveled edges to provide a large bending radius for high-performance data cables and fibre optics. Provides optimal support for high-performance data cable, including CAT7 and fibre optics. 1 5/16" (33 mm) diameter.
Material Steel
UPC 782856848547
Weight 5.125
Brand nVent CADDY
Category Cable Routing and Management
Category Additional Information nVent CADDY Cat HP J-Hooks are the heart of the nVent CADDY Cat HP System. The J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables and fibre optics. nVent CADDY Cat HP J-Hooks are available in a wide range of sizes to offer a solution that meets industry standards for Cat 6A and easily accommodates Cat 7, large-diameter fibre optic, innerduct and coax cable. Individual nVent CADDY Cat HP J-Hooks can be fastened directly to the building structure or can be used to expand existing nVent CADDY Cat HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation.
Category Description Non-continuous pathway support solution with a wide base design and smooth beveled edges to provide a large bending radius for high-performance data cables and fibre optics. Provides optimal support for high-performance data cable, including CAT7 and fibre optics. 1 5/16" (33 mm) diameter.
Category Features Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic Rounded edges on J-Hooks provide proper bend radius support for high performance data cables Multiple color options aid in the identification and organization of the pathway application Provides superior fill capacity and load rating over most other non-continuous cable support alternatives Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces Tested according to DIN 4102-12 Complies with EN 50174-2 Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Finish Pregalvanized
Material Steel
UPC 782856848547
