Panduit DNF10-250FIMB-K, Wire Termination #DNF10-250FIMB-K

Home > Panduit DNF10-250FIMB-K, Wire Termination
Panduit DNF10-250FIMB-K, Wire Termination

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit DNF10-250FIMB-K, Wire Termination

Download Spec Sheet

Panduit DNF10-250FIMB-K, Wire Termination

Part #: DNF10-250FIMB-K

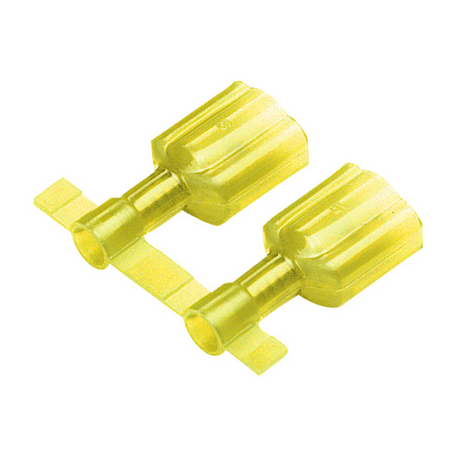

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032"" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of a 1000 pieces. Sold in and priced as packages of 1000.

Please select all above options before adding to cart.

Barrel Type Butted Seam
Category Connectors & Terminators
Color Coding Yellow
Finish Nickel
Height 0.36 inches
In Stock Yes
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.96 inches
Package Qty 1000
Package Volume 0.9208 cubic feet
Package Weight 5.9000 pounds
Product Class Wire Termination
Standard Carton Length 662.94 millimeters
Standard Package Height 2.4 inches
Standard Package Length 26.1 inches
Standard Package Width 25.4 inches
UPC 74983744770
Width 0.45 inches
