Panduit DV14-250MB-C, Disconnects

Part #: DV14-250MB-C

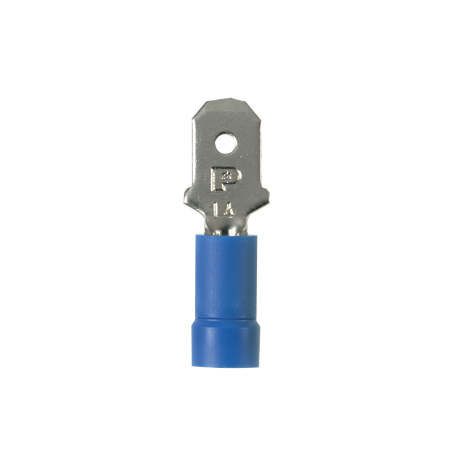

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.96" (24.4 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100. Sold in and priced as packages of 100.

Please select all above options before adding to cart.

Barrel Type Butted Seam
Carton Qty 500
Carton Weight 1.650 pounds
Category Wiring, Ducts, & Accessories
Color Coding Blue
Finish Nickel
Height 0.18 inches
In Stock Yes
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.96 inches
Package Qty 100
Package Volume 0.006 cubic feet
Package Weight 0.330 pounds
Product Class Disconnects
Standard Carton Height 4.35 inches
Standard Carton Length 9.85 inches
Standard Carton Width 2.15 inches
Standard Package Height 1.9 inches
Standard Package Length 4.3 inches
Standard Package Width 1.9 inches
UPC 74983822256
Width 0.25 inches
