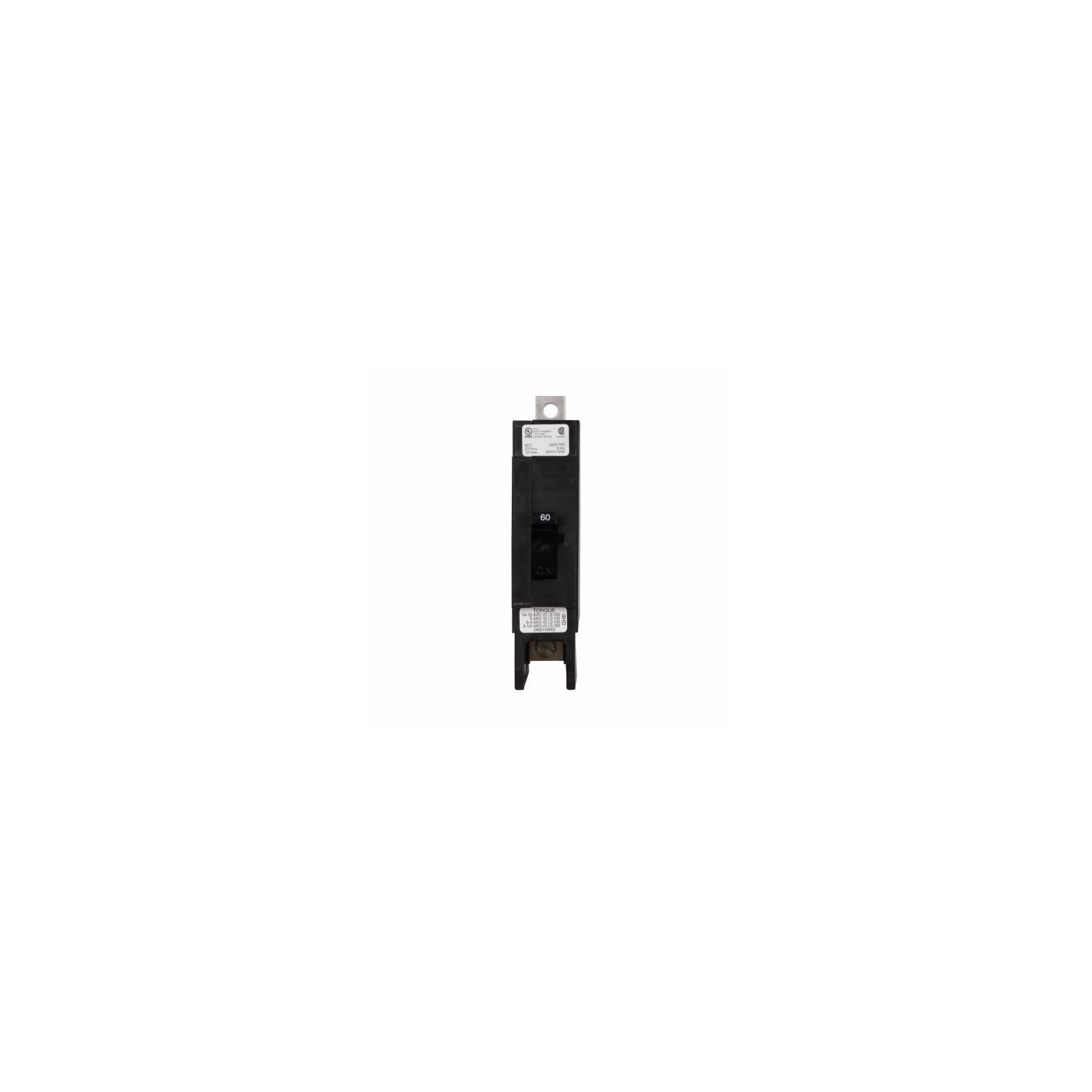

Eaton GHB1015 Molded Case Circuit Breaker; 277V, 15 Amp, 1 Pole #GHB1015

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

Eaton GHB1015 Molded Case Circuit Breaker; 277V, 15 Amp, 1 Pole

Part #: GHB1015

Type GHB Bolt-On Panelboard Circuit Breaker

Qty

Please select all above options before adding to cart.

Product Specification Q&A

Amps	15 Amp
Breaker Interrupt Rating 1	65KA @ 120VAC
Breaker Interrupt Rating 2	14KA @ 277VAC
Breaker Line Side Term Method	Screw Terminal
Breaker Load Side Term Method	Lugs
Category	Circuit Breakers
Category Standards	UL Listed; Federal Specifications Classification W-C375B
Circuit Breaker Type	Molded Case Circuit Breaker
Frame	G-Frame
Height	2.1
In Stock	Yes
Length	6.2
Manufacturer	Eaton
Maximum Interrupt Rating	14KA @ 277VAC
Number of Poles	1 Pole
Product Description	277Volt, 15Amp, 1-Pole
Technical Drawing	http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&Rendition=Primary&dDocName=98126783
Trip Type	Thermal Magnetic
UNSPSC	39121616
UPC	786679023617
Volts	277V
Width	3.7
